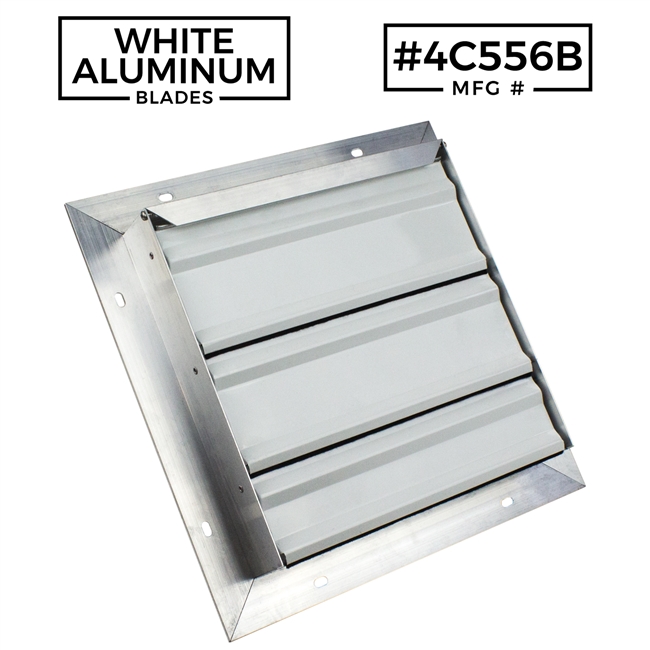

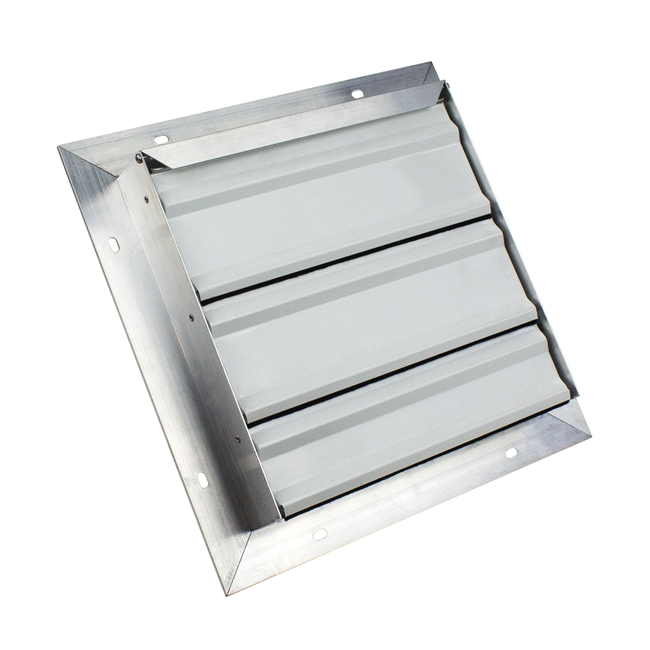

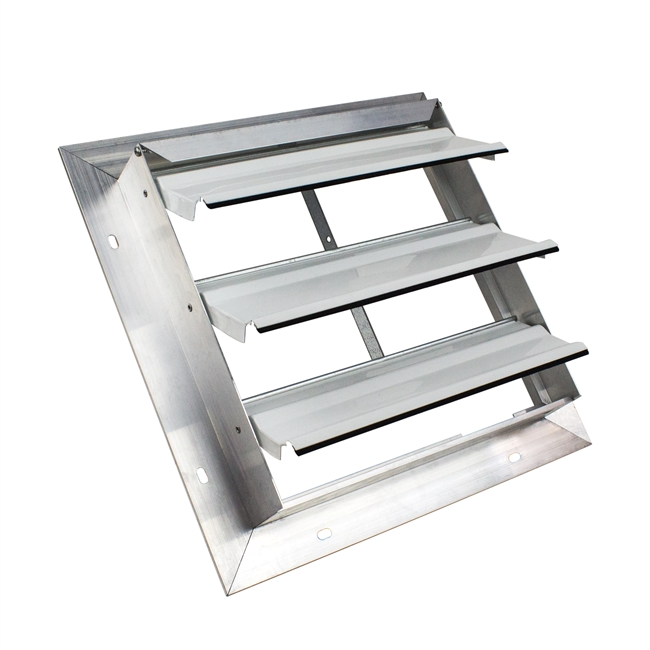

Exhaust Shutter - Gravity Operated - Fits Fan Dia 12" - Opening Required 12 1/2" x 12 1/2" Extruded Aluminum Frame - G-90 Glavanized Tie Rod - For Use With Vertical Mounted Exhaust Fans Max Velocity 2500 FPM - Vertical Mounting Position - Blade Material White Painted Aluminum Frame Depth 2 1/2" - Open Depth 5 3/4" - Flange Width 1 1/2" - Free Area 0.786 Square Ft 15 1/4" Length x 15 1/4" Width x 2.5" Height - 4C556B Item# Item Name Our Price Qty Add M016A Wall Shutter - #4C556B $93.11 Check the items you wish to purchase, then click
